This Ag/AgCl reference electrode is a special version for our IPS attachment cell. It has a shaft diameter of 5 mm and a shaft length of 50 mm. It has a ceramic diaphragm and is filled with saturated KCl. The filling opening is located on the shaft. It has a 4 mm banana jack for connection to the measuring device.

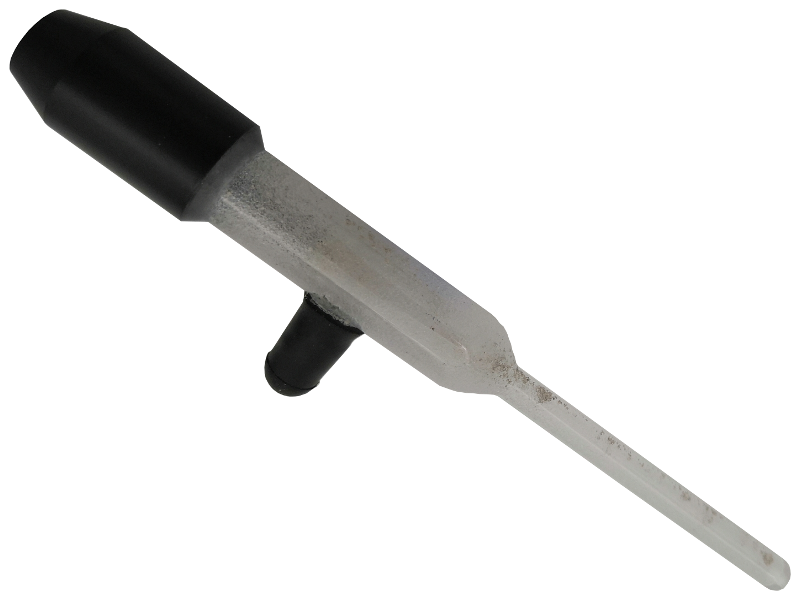

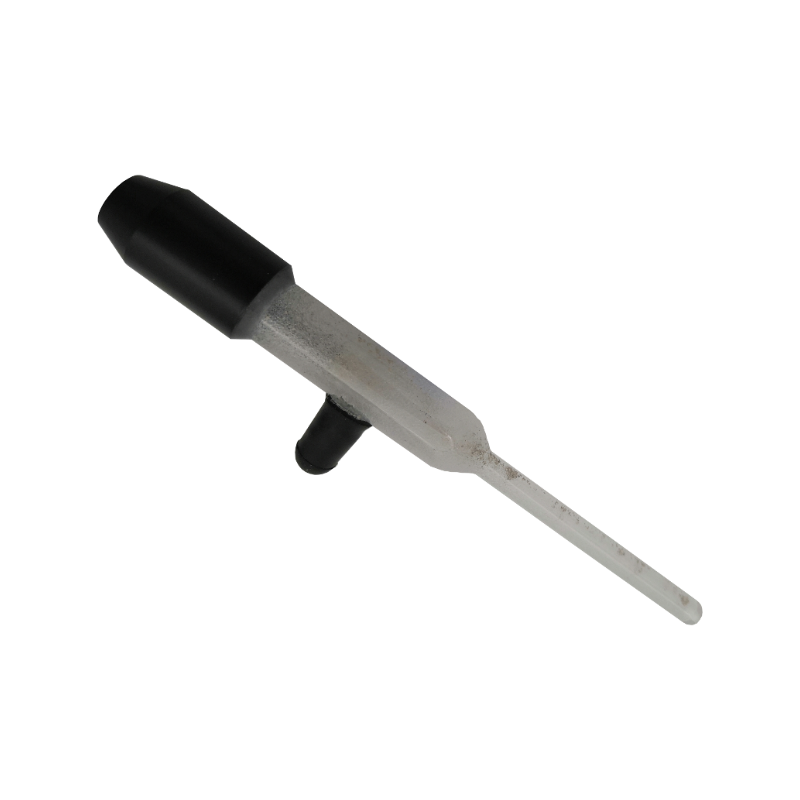

Reference electrode SE11 short
- Ag/AgCl
- Shaft diameter: 5 mm
- Shaft length: 50 mm
- Ceramic diaphragm
- Filling opening at shaft
- 4 mm banana plug
